Developed for professional recording, editing,
and mixing projects, the Pro Tools|HD® 1 system combines a single core
DSP card running Digidesign’s proprietary TDM II bus architecture with
the processing resources of your computer. This entry-level system
delivers rock-solid performance, guaranteed track counts, access to
high-quality Digidesign audio interfaces and peripherals, and exclusive
TDM plug-in processing.
Note: All Pro Tools|HD systems require the presence of at least one Pro
Tools|HD audio interface (purchased separately). Add interfaces to extend
your I/O capabilities.
What’s in the Box

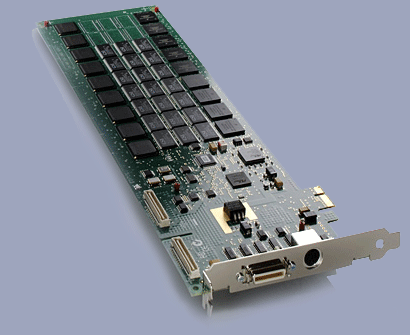

- 1 HD Core card (PCI) or 1 Accel Core
card (PCIe)
- Pro Tools® HD 7 software
- Over 40 processing plug-ins, virtual
instruments, and compatible applications
- Pro Tools HDpack plug-in bundle
- Free Bomb Factory® plug-ins
- Digidesign DigiRack™ Plug-ins
- Xpand!™ sample-playback/synthesis
workstation
- Pro Tools Ignition Pack 2 Pro
collection
- 12-foot DigiLink cable for I/O
connectivity*
- iLok USB Smart Key for software
authorization
- Printed boxed manual set, including
Digidesign’s development partner catalog
Features
- 9 DSP chips for powering the mix engine
and TDM plug-ins
- Sample-rate support up to 192 kHz
- Support for up to 32 channels of I/O
- Up to 96 simultaneous audio tracks at
44.1/48 kHz (112 total audio tracks)
- Up to 48 simultaneous audio tracks at 96
kHz
- Up to 18 simultaneous audio tracks at
192 kHz with PCIe
- Up to 12 simultaneous audio tracks at
192 kHz with PCI
- Up to 160 mono or stereo auxiliary
inputs
- Up to 128 instrument tracks
- 256 MIDI tracks
- 128 internal mix buses
*Optional 100-foot DigiLink cable supports
up to 96 kHz sample rates
Incorporating the latest advances in audio, synchronization, and MIDI
technology, Pro Tools|HD® I/O interfaces work together with your Core
system to deliver unparalleled sonic quality and functionality.
Custom-configure your system by choosing from a wide range of interfaces,
which deliver high-resolution audio with built-in sample rate conversion;
flexible analog and digital I/O in the most popular formats; pristine,
remote-controllable preamplification; sample-accurate MIDI; and versatile
synchronization capabilities.
|
|
|
Pro
Tools|HD audio interface with up to 16 channels of analog
and digital I/O at 192 kHz.
|
|
|
|
|
Pro
Tools|HD audio interface with up to 16 channels of digital
I/O at 192 kHz.
|
|
|
|
|
Pro
Tools|HD audio interface with up to 16 channels of analog
and digital I/O at 96 kHz.
|
|
|
|
|
Pro
Tools|HD audio interface for line-level inputs, with up to
16 channels of I/O at 96 kHz.
|
|
|
|
|
Remote-controllable,
world-class, eight-channel mic preamp for Pro Tools
systems or stand-alone use.
|
|
|
|
|
Pro
Tools system peripheral that provides near sample-accurate
lock to time code or bi-phase/tach signals and a 192 kHz–capable,
high-fidelity, low-jitter Word Clock.
|
|
|
|
|
Pro
Tools system peripheral that provides up to 10 MIDI inputs
and outputs for a total of 160 channels.
|
|
|
