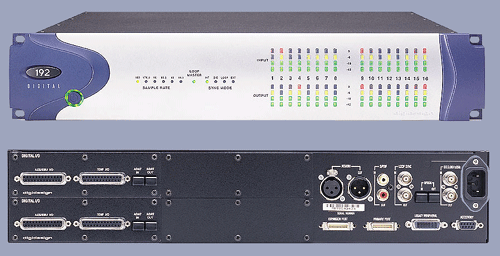

192 Digital I/O is a high-definition audio
interface specifically designed to facilitate digital input from a variety
of sources into the Pro Tools|HD environment. An alternative to the 192 and
96 I/Os, 192 Digital I/O features a wide range of digital I/O options,
including up to 16 channels of AES/EBU, TDIF, and ADAT I/O, along with S/PDIF
I/O.
Features
- Supports up to 16 simultaneous channels
of AES/EBU I/O at 96 kHz
- Supports up to 8 simultaneous channels
of AES/EBU I/O at 192 kHz
- Extremely flexible digital I/O: 16
channels of AES/EBU, TDIF, ADAT I/O; 2 additional channels of AES/EBU
or S/PDIF digital I/O; 8 additional channels of ADAT optical or 2
channels of optical S/PDIF I/O
Switchable, real-time sample rate conversion on digital inputs, which
allows easy streaming of digital signals at any sample rate
- Word (1x) and Slave Clock (256x) input/output
- Expansion Port that allows for direct
connection of another 192 Digital I/O, 192 I/O or 96 I/O
- Legacy Peripheral Port that allows for
connection of 888|24, 882|20, 1622, or 24-Bit ADAT Bridge I/Os*
* At 48 kHz or lower
sample rate
Dimensions
- Width: 19 in / 48.26 cm
- Height 3.5 in / 8.89 cm
- Depth: 15.19 in / 38.58 cm
- Weight: 17.18 lbs / 7.79 kg
|
