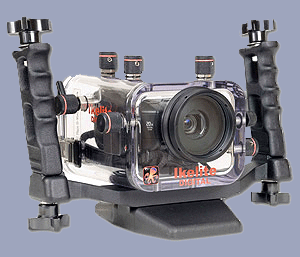

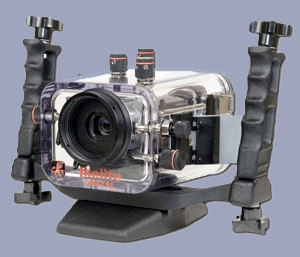

HDR HC-7 & HC-9
Molded of clear polycarbonate to provide
seamless construction and corrosion proof performance. This “Clearly
Superior” design provides full view of the camcorder, control
functions, and back "O" ring seal for assurance the system is
safe.
The Sony camcorder and Ikelite housing
are so small they are an absolute delight to use. A complete housing
and camera combination weighs approximately 4kg (9 pounds). Housing
has a working depth of 60m (200’)
The housing with base and handles
measures 27cm (11") width; 20cm (8") height; 20cm (8")
length. Sony NP-FH50, FH60, FH70 and FH100 batteries are accommodated.
The Base removes instantly with a unique
toggle clamp for traveling or attaching of the optional Pro Video-Lite 3
battery pack. The handle assembly detaches from the housing by removal
of just two nuts for packing.
Included UR/Pro Color Filter provides
color correction in tropical blue water. An optional filter #6441.81 is
also available to achieve more natural tones in green water settings.
- Optical Glass Port
- Power On/Off
- Recording Start/Stop
- Power Zoom control
- Photo
- Auto/Manual Focus Lock/
Manual Button
- Camera Control Dial
- Backlight Control
- Control All Functions on LCD Screen
Touch Pad (2) Controls
- LCD Reversing Circuit On/Off
- Display Battery Info.
- Super-Eye Viewfinder
- UR/Pro Color Filter
Controls for the Camera Control Dial,
Manual Button and the LCD Screen Touch Pad provide full access to
setting white balance and white balance shift.
The camera’s LCD monitor can be viewed
from the rear of the housing, using the External Mirror featured on the
side of the housing.
Open the camera’s LCD monitor,
rotate 180 degrees, and then press it back against the side of the
camera before installation. The external mirror is hinged so that
it can be opened to reflect the image from the camera’s LCD
monitor.
This housing includes (IRC) Image
Reversing Circuitry. The circuit reverses (flips) the image and
text on the LCD screen so that when the image is reflected in the
External Mirror, it appears correct left-to-right.
The housing port is threaded
allowing the use of optional 67mm threaded wide-angle conversion
lens available from Inon, Epoque, or the #6420 Ikelite lens.
Internal Wide-Angle Lens Option:
Special ports are available for use with the Raynox HD-5050 Pro
high definition wide-angle lens. Optional ports sold separately as
dome port #9304 or flat lens port #9304.1. Raynox HD-5050 Pro lens
not included. Lens not available for purchase through
Ikelite.
Hi-Definition Wide-Angle Port
Option:
The #6480 Ikelite WP-80 Wide Angle Port is designed by
world-renowned Fathom Imaging to deliver the ultimate in resolving
power.
|
|
