Sony HDR HC-1 ( HDV
1080i) or HVR-A1 ( HDV 1080i)
( HVR-A1 without the top microphone block and camera lens shade )
Housing measures 6" wide, or
10.5" wide with the removable handle bar attached; 8" high
including the removable base; and 11" deep including knobs and port.
Weight above water is less than ten pounds.
Molded of clear polycarbonate to provide
seamless construction and corrosion-proof performance. This "Clearly
Superior" design provides full view
of the camcorder, control functions,
and assurance the system is safe, allowing you to see if the case is
sealed.
All camera controls can be
accessed with this housing, including both manual and auto focus.
Super Eye magnifier for the optical
viewfinder is included, providing enhanced viewing while wearing a
diving mask. External #9290.94 Side Mount Mirror is included to provide
viewing of the color monitor through the clear housing. Reversing
electronic circuitry shows correct left-to-right image.
Space is provided to allow use of the
optional Sony NP-FM50, NP-FM70 or NP-QM71 batteries.
The base removes instantly with a unique
toggle clamp for traveling or attaching of the optional Pro Video-Lite
II battery pack. The handle assembly detaches from the housing by
removal of just two nuts for packing.
All touch screen menu functions
are provided which allows white balance. The A1 allows assigning white
balance to the right-front push button for which a control is provided.

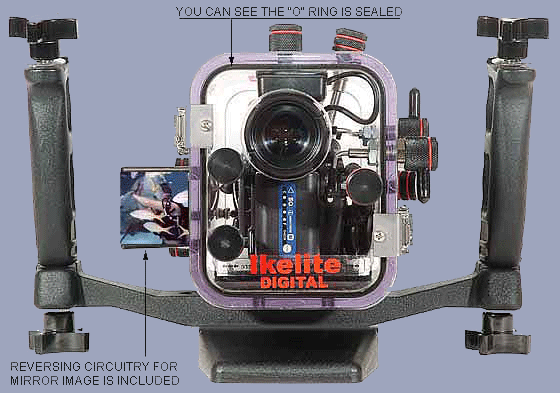

Housing includes image reversing
circuitry so objects appear correct when screen is viewed using the
mirror.
- Power on/off/memory
- Recording start/stop
- Zoom control
- Tele Macro
- Expanded Focus
- Exposure on/off
- Exposure adjustment
- Photo button
- Manual Focus Ring
- Focus Lock switch
- Back Light button
- Glass lens port
- Viewfinder magnification and Mirror
for viewing screen included
- Removable external UR/Pro Filter
- Accepts external wide-angle lenses
- Accepts NP-FM50, NP-FM70 or NP-QM71
optional batteries
Internal Wide-Angle Lens Option:
Special ports are available for use with the Raynox HD-5050 Pro high
definition wide-angle lens. Optional ports sold separately as dome port
#9304 or flat lens port #9304.1. Raynox HD-5050 Pro lens not included.
Lens not available for purchase through Ikelite.
Hi-Definition Wide-Angle Port Option:
The #6480 Ikelite WP-80 Wide Angle Port is designed by world-renowned
Fathom Imaging to deliver the ultimate in resolving power.
Optional (not an Ikelite
product) Inon UWL-100 wide angle lens, Epoque conversion wide
lens, and #6420 Ikelite lens attach directly to the outside of
the port to provide even greater wide angle coverage, but the camera
must remain in the wide angle position where these lenses are designed
to operate. Many other housings for these cameras can not provide choice
of either the view screen or magnified viewfinder, or include the URPro
filter. The Ikelite design leaves almost nothing to be desired for
safety and capability. |
