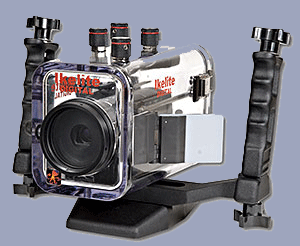

Molded of clear polycarbonate to provide
seamless construction and corrosion-proof performance. This "Clearly
Superior" design provides full view of the camcorder, control
functions, and assurance the system is safe, allowing you to see if the
case is sealed.
Housing measures 6" wide, or 10.5" wide with the removable
handle bar attached; 8" high including the removable base; and
12" deep including knobs and port. Weight above water is less
than ten pounds.

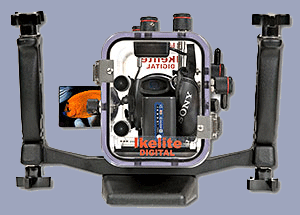

External #9290.95 Side Mount Mirror is included to provide viewing of
the color monitor through the clear housing. Reversing electronic
circuitry shows correct left-to-right image.
Space is provided to allow use of the optional Sony NP-FP50 or NP-QM91
batteries.
The base removes instantly with a unique toggle clamp for traveling or
attaching of the optional Pro Video-Lite 3 battery pack. The handle
assembly detaches from the housing by removal of just two nuts for
packing.
Housing operates safely to 200 feet.
All touch screen menu functions are
provided which allows white balance.
- Power On/Off
- Recording start/stop
- Zoom control
- Photo
- Cam Control/Backlight
- LCD Controls #1, #2, #3
- LCD Reversing Circuitry On/Off
- Focus/Exposure
- AE Shift
- White Balance Shift
- Focus Ring
- Glass lens port
- Mirror for viewing screen included
- Removable external UR/Pro Filter
- Accepts external wide-angle lenses
- Accepts NP-FP50 or NP-QM91 optional
batteries
The port is threaded for fitting optional
67mm threaded waterproof wide-angle lenses such as the Ikelite #6420.
Also accepts Inon (UWL-100 Type 2) and Epoque (DCL-20).
Internal Wide-Angle Lens Option:
Special ports are available for use with the Raynox HD-5050 Pro high
definition wide-angle lens. Optional ports sold separately as dome port
#9304 or flat lens port #9304.1. Raynox HD-5050 Pro lens not included.
Lens not available for purchase through Ikelite.
Hi-Definition Wide-Angle Port Option:
The #6480 Ikelite WP-80 Wide Angle Port is designed by world-renowned
Fathom Imaging to deliver the ultimate in resolving power.

|
