SR-37, SR-47, SR-57,
SR-67, SR-77 & SR-87

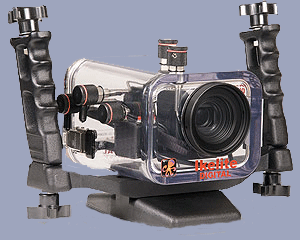

Molded of clear polycarbonate to provide
seamless construction and corrosion proof performance. This “Clearly
Superior” design provides full view of the camcorder, control
functions, and back "O" ring seal for assurance the system is
safe. Maximum operating depth is 200 feet (60 m).
Housing measures 11" (27cm) wide
with the removable handle bar attached; 8" (20cm) high including
the removable base; and 8" (20cm) deep including knobs and port.
Weight above water is less than nine pounds (3.9 kg) for easy
packing, and very slightly negative in saltwater for stability and
comfortable handling.
The Base removes instantly with a unique
toggle clamp for traveling or attaching of the optional Pro Video-Lite 3
battery pack. The handle assembly detaches from the housing by removal
of just two nuts for packing.
The housing port is threaded allowing the
use of optional external 67mm threaded wide-angle conversion lenses
including the #6420 Ikelite W-20, Epoque DCL-20, and Inon UWL-100 Type
II.
Housing
Features
-
Optical Glass Port
- Power On/Off (through circuitry)
- Recording Start/Stop Control
- Zoom Control
- Photo/Snapshot
- Touch Screen Controls
- Image Reversing Circuitry
- UR/Pro Color Filter
 Focus
lock and white balance features can be accessed through the camera's
touch-screen controls. Controls on the left-hand side of the camera body
are blocked by the camera's LCD screen. Power on/off can still be
accessed using the housing's built in electronics module.
The included removable UR/Pro
filter enhances red tones in tropical blue water settings with available
sunlight at depths up to 80 feet (24 m). An accessory green water filter
#6441.81 is also available for color correction and more natural tones
in green water settings.
Watch your video quality improve
dramatically by adding light to your system. The Pro-V8 LED Video Lite
is the ultimate in easy and affordable video lighting. Or opt for the
super wide professional grade coverage of the Pro Video Lite 3.
|

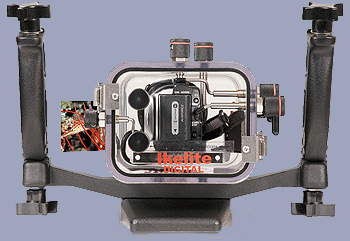

The camera's LCD monitor can be
viewed from the rear of the housing using the External Mirror
featured on the side of the housing.
The housing includes Image
Reversing Circuitry. The circuitry "flips" the image in
the camera's LCD so that its reflection in the mirror appears
correct left-to-right.* The External Mirror is hinged to fold
against the housing side for travel.
* Camera microphone is disabled when Reversing Circuitry is
turned on
Sony NP-FH40, FH50, FH60 & FH70
batteries are accommodated.
|
|
