SR-190, SR-200, SR-290
& SR-300

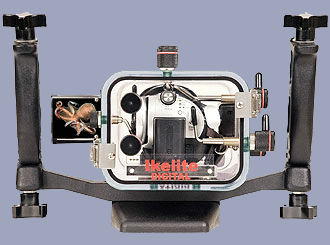

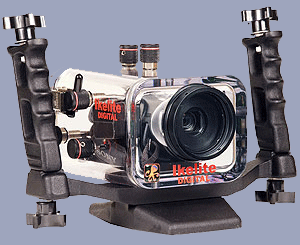

Molded of clear polycarbonate to provide
seamless construction and corrosion proof performance. This “Clearly
Superior” design provides full view of the camcorder, control
functions, and back "O" ring seal for assurance the system is
safe. Maximum operating depth is 200 feet (60 m).
Housing measures 11" (27cm) wide
with the removable handle bar attached; 8" (20cm) high including
the removable base; and 8" (20cm) deep including knobs and port.
Weight above water is less than ten pounds (4.5 kg) for easy
packing, and very slightly negative in saltwater for stability and
comfortable handling.
The Base removes instantly with a unique
toggle clamp for traveling or attaching of the optional Pro Video-Lite 3
battery pack. The handle assembly detaches from the housing by removal
of just two nuts for packing.
The included removable UR/Pro
filter enhances red tones in tropical blue water settings with available
sunlight at depths up to 80 feet (24 m). An accessory green water filter
#6441.81 is also available for color correction and more natural tones
in green water settings.
Sony NP-FH40, FH50, FH60 & FH70
batteries are accommodated.
Housing
Features
- Optical Glass Port
- Power On/Off Control
- Recording Start/Stop Control
- Photo/Snapshot
- Zoom Control
- Touch Screen Controls
- Image Reversing Circuitry
- UR/Pro Color Filter
Focus lock and white balance
features can be accessed through the camera's touch-screen
controls.
The camera's LCD monitor can be
viewed from the rear of the housing using the External
Mirror featured on the side of the housing.
The housing includes Image
Reversing Circuitry. The circuitry "flips" the image in
the camera's LCD so that its reflection in the mirror appears
correct left-to-right.* The External Mirror is hinged to fold
against the housing side for travel.
* Camera microphone is disabled when Reversing Circuitry is
turned on
Watch your video quality improve
dramatically by adding light to your system. The Pro-V8 LED Video
Lite is the ultimate in easy and affordable video lighting. Or opt
for the super wide professional grade coverage of the Pro Video
Lite 3.
|
The housing port is threaded
allowing the use of optional external 67mm threaded wide-angle
conversion lenses including the #6420 Ikelite W-20, Epoque DCL-20,
and Inon UWL-100 Type II.
Internal Wide-Angle Lens Option:
Special ports are available for use with the Raynox HD-5050 Pro
high definition wide-angle lens. Optional ports sold separately as
dome port #9304 or flat lens port #9304.1. Raynox HD-5050 Pro lens
not included. Lens not available for purchase through
Ikelite.
Hi-Definition Wide-Angle Port
Option:
The #6480 Ikelite WP-80 Wide Angle Port is designed by
world-renowned Fathom Imaging to deliver the ultimate in resolving
power.
|
|
