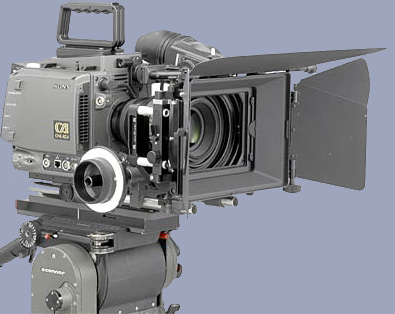

F23
снабжена двумя 2/3 дюймовыми ПЗС-матрицами
2,2 Мб и 14-битным аналого-цифровым
преобразователем. Система будет
поддерживать форматы 1080/23.98P, 24P, 25P, 29.97P,
50P, 59.94P, 50i и 59.94i.
Цифровой
рекордер SRW-1 4:4:4 будет присоединяться
непосредственно к этой новой системе,
без использования кабеля. Рекордер
также может быть присоединен к камере
через dual-link.
Для
удобства в использовании, благодаря
улучшенной конструкции, корпус камеры
совместим со значительным числом
аксессуаров, включая боксы для
комбинированной съемки и устройства
непрерывного изменения фокусировки
камеры. В системе F23 также использован
более прочный материал для крепежа
объективов.
При
использовании F23 совместно с рекордером
SRW-1 новая система получит возможность
захватывать и записывать материал с
разной скоростью в полном разрешении HD
(1920 x 1080 пикселей).
Технические
характеристики:
- 1080P RGB 4:4:4 image capture and signal
processing.
- Intuitive film work-style architecture.
Controls, indicators and menus follow cinematography conventions.
- Variable Frame-rate in 1fps increments
over and under cranking
- 1fps to 30fps @ 4:4:4 mode.
- 1fps to 60fps @ 4:2:2 mode.
- Interval recording (with ramp control).
- Shutter angle can be varied from 3.9 to 360 degrees.
- High precision 14-bit AD conversion and
high bit order digital signal processing for high latitude (dynamic
range), and a accurate color reproduction.
- Five preset plus custom gamma curves.
- One preset 10-bit "S-Log" gamma for ultra wide latitude
- Four preset hyper gamma curves.
- Cinematographers can create custom gamma curves.
- High precision, reinforced B4 Lens Mount.
- Compact and flexible design, the camera
can be mounted in confined spaces and operated from any side.
- Top or rear, direct docking to the SRW-1.
- Dual link for tethered applications.
- Included "Assistant's Control Panel"
duplicates all the camera controls and indicators on the camera body.
- Compatible with SR Motion; interval
recording, select FPS, slow shutter and digital accelerating,
decelerating and linear speed ramps.
- Directly compatible with ARRI
cinematography accessories.
- 12V and 24V DC accessory power outputs.
- Camera setup can be saved to Memory
Stick® media.
Дополнительные
аксессуары:
Model Name |
Description |
HDVFC950W |
Hd Electronic Viewfinder - |
ACDN2B |
AC Adaptor/Charger |
BCL500 |
4CH Lithium-Ion Battery Charger |
BCL70 |
Portable 2 channel battery charger
for lithium-ion batteries |
BCM150 |
Ni-MH & Lithium-Ion Battery
Charger |
BKPL551 |
V-Mount to 4-pin DC male connector
battery adapter for PDW-D1 |
BPGL95 |
Graphite Lithium-Ion Battery |
HDVF20A |
HD 2" Electronic Viewfinder |
HKSR102 |
Select Fps Recording Option for SRW1
and SRPC1 HDCAM-SR portable VTR |
MSH128 |
New Memorystick 128mb |
MSU900 |
Master Setup Unit |
MSU950 |
Master setup unit provides full
control of the BVP and HDC series camera systems. |
RMB150//A |
Handheld remote control unit for
BVP-950A, BVP-750A, BVP-570, BVP-550, HDW-700A, HDW-F900 |
RMB750 |
Remote Control Unit For HDC and BVP
Series |
SRPC1 |
HD Video Processor For SRW-1 |
SRW1 |
HD Portable Digital Recorder |
|
