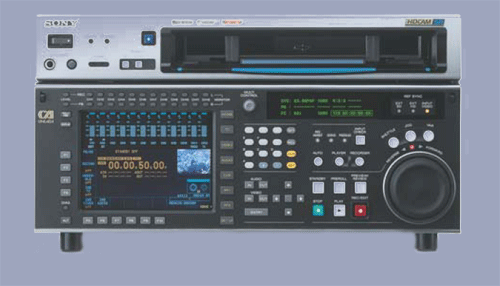

The SRW-5000 is a high-end HD digital videocassette recorder that employs the HDCAM-SR format. Applications range from HDTV to digital cinematography. Key features include high quality 1080i, 1080P or 720P recording and playback, a wide array of internal format conversions, including 4:4:4 to 4:2:2 legacy playback of HDCAM and Digital BETACAM tape
formats.
- 1080 recording and playback
at multiple frame rates: 23.98PsF, 24PsF, 25PsF, 29.97PsF, 50i, 59.94i
- 720P/59.94/50 recording and playback
- Switchable 4:4:4/4:2:2 recording (option)
- New HDCAM-SR tape format
- High quality MPEG-4 Studio Profile compression
- 12 channels of 24-bit audio at 48kHz
- Internal format conversion (option)
- Legacy playback (Digital Betacam option)
- Long recording time on a single cassette of up to 155 minutes at
1080/24P
- User friendly controls
- Frame accurate insert/assemble editing
- High speed colour picture search
- Dynamic Tracking playback
- Digital Jog Sound
- Dynamic Motion Control (DMC) playback
- Pre-read editing
- Confidence playback
- Selectable downconverter picture modes including squeeze, letter box and
edge crop
- Audio output channel routing, can route audio to any HD-SDI or SDI
output
- Dual-sync operation
- Off-speed playback capabiity
- Built-in Tele-file read/write capability
- Metadata handling
- Newly designed DT-Head
- New tape formula
- Easy maintenance
Supplied Accessories:
- PSW4 x 16 screws for
rack mounting
- CD-ROM Operation manual and Maintenance manual part 1
- Memory stick / PC card adaptor
Optional accessories:
| -
HKSR-5001 Format Converter Board |
| -
HKSR-5002 Digital Betacam Processor Board |
| -
HKSR-5003 RGB Processor Boards |
| -
RMM-110 Rack Mount Kit |
| -
BCT-HD12CL tapes head cleaning |
| -
Videocassette tapes for HDCAM VTRs |

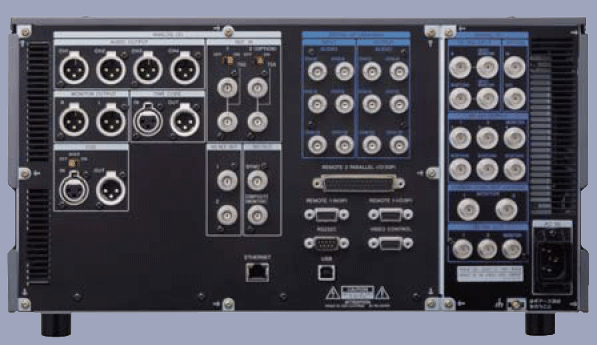

Versatile
Interfaces
The
SRW-5000/5500 features a wide range of interfaces including:
• HD-SDI I/O
• HD-SDI (format conversion) out • SDI out • SD composite out •
AES/EBU digital audio I/O • Analog audio out • Analog audio in(cue)*
• Ethernet port • RS-232/422 50-pin control interfaces • Video
control
*SRW-5500 only
|
