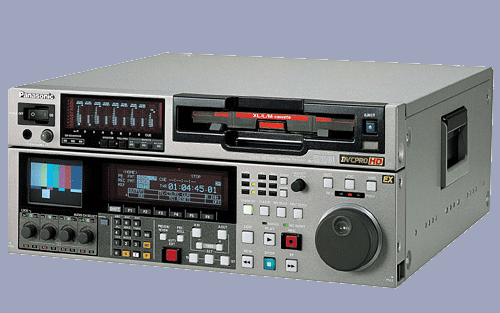

126-Minute 1080i/720P DVCPRO HD® Studio VTR with DVCPRO® 50/25, DVCAM and DV Playback
Up to two hours recording time; ideal for sports and HD program delivery (L, M and XL cassettes)
• Multiple HD recording formats - 1080/60i, 1080/59.94i, 1080/50i, 720/60p, and 720/59.94
• Tape operating costs comparable to DVCPRO 50
• Eight channels of discreet audio recording, supporting 5.1 channel surround sound and SAP
• Universal DV format playback compatibility - DV, DVCAM, DVCPRO25/50, DVCPRO HD
• 9-µ recording track - DVCPRO HD-LP format offers twice the recording density of DVCPRO HD
• Allows direct playback of 720/24fps VariCam-recorded tapes, converting them to 1080/24p for editing or dubbing
• HD-SD format downconversion, optional SD-HD upconversion
• Output screen aspect ratio conversion
• Advanced slow motion and built in LCD monitor on front panel
• Compact 4RU footprint with 100x shuttle and jog in both forward and reverse
• Wide range and slow motion playback
• Multi-Cue functions
• Versatile Remote Systems
• Built in playback format converter with dedicated SD monitor output
• Optional MetaData and SDTI capabilities
Standard NTSC/PAL switchable
Media Format Record: DVCPRO; Playback: DVCPRO, DV, Mini-DV, DVCAM
Sampling Frequency Y: 74.25/1.001 MHz, Pb/Pr: 37.125/1.001 MHz
Quantization 8-bit
Recording Format DVCPRO HD-LP (1080/60i, 1080/59.94i, 1080/50i, 720/60P, 720/59.94P, 480i input converted/recorded to HD (optional))
Playback Format 1080/60i, 1080/59.94i, 1080/50i, 720/60P, 720/59.94P, 720/24P/60, 720/25p/60, 576/50i, 480/60p, 480/60i,
Variable Speed Playback Yes
Audio 8 channels, 48 kHz, 16-bit
Analog Composite 3 outputs
SDI 1 input (optional), 2 outputs
HD SDI 1 input, 4 outputs
SDTI Optional
IEEE 1394 Interface No
Remote Control Interface RS-422A, 9-pin
Timecode 1 input, 1 output
Metadata Optional
SD-HD Upconversion Standard
HD-SD Downconversion Standard
DC Operation No
LCD Screen Built in on front panel
Jog/Shuttle Knob Yes
Дополнительные аксессуары:
AJ-UC1700 Format Converter
AJ-VNC150A DVCPRO HD VANC Ancillary (Metadata) Board
AJ-YAC150 SDTI I/O Board
|
