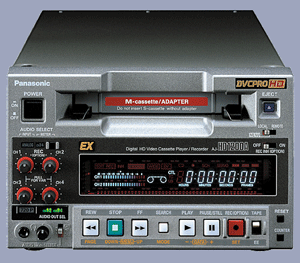

Compact DVCPRO® HD/50/25, DVCAM and DV Player with Available DVCPRO HD® Recording and Available IEEE 1394 Interface
Media Format Record: DVCPRO; Playback: DVCPRO, DV, Mini-DV, DVCAM
Sampling Frequency Y: 74.25/1.001 MHz, Pb/Pr: 37.125/1.001 MHz
Quantization 8-bit
Recording Format DVCPRO HD-LP (optional) (1080/60i, 1080/59.94i, 1080/50i, 720/60P, 720/59.94P)
Playback Format 1080/60i, 1080/59.94i, 1080/50i, 720/60P, 720/59.94P, 720/24P/60, 720/25p/60, 576/50i, 480/60p, 480/60i,
Variable Speed Playback Yes (with external controller)
Audio 8 channels, 48 kHz, 16-bit

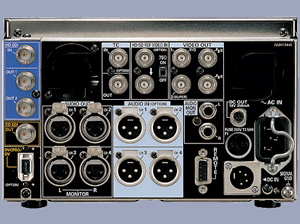

Analog Component 1 output
Analog Composite 2 outputs
SDI 1 output (optional), includes down conversion
HD SDI 1 input (optional), 2 outputs
SDTI No
IEEE 1394 Interface Optional
Remote Control Interface RS-422A, 9-pin
Timecode 1 input, 1 output
SD-HD Upconversion Optional
HD-SD Downconversion Standard
DC Operation Yes
LCD Screen No
Jog/Shuttle Knob No
Optional:
AJ-A95 Remote Controller for VTRs with RS-422A Control
AJ-YA120A HD-SDI Input/Output and SD-SDI Output Board
AJ-YAD120A IEEE 1394 Interface Board
|
