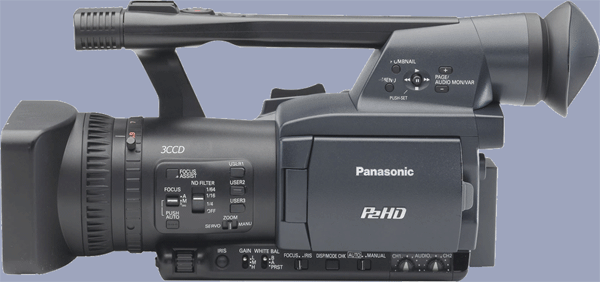

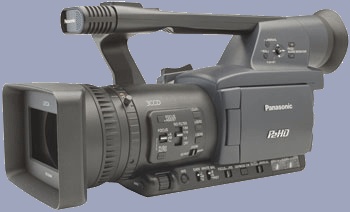

AG-HPX170

Panasonic

Особенности

• Три 1/3” широкоформатные CCD
• 14-bit A/D преобразование
• Объектив 13x Leica Dicomar
• Два слота для карт P2
• Съемка в форматах: DVCPRO HD, DVCPRO50, DVCPRO, DV
• Съемка в режимах 16:9 или 4:3
• Переменная скорость съемки от 12-ти до 60-ти кадров в секунду при съемке в режиме 720р
• Выход HD-SDI
• Интерфейсы IEEE 1394 и USB 2.0
• Встроенный 3.5” цветной LCD монитор

• Compact hand-held size weighs only 4.2 lbs (1.9kg).
• Leica Dicomar* 13x zoom lens with 28mm (35mm equivalent)
wide-angle setting, 72mm diameter and cam-driven manual zoom.
• Newly developed 1/3” 16:9 progressive CCD for high image quality and sensitivity.
• High-performance DSP with 14-bit A/D conversion and 19-bit inner processing capability.
• Eleven-step frame rate selection in 720p mode for variablespeed shooting in the 12-fps to 60-fps range.
• Selectable gamma including Cinelike mode.

• Broadcast quality DVCPRO HD recording in 1080/720 HD multi-format (see table at right).
• Two P2 card slots allow up to 64 minutes of continuous HD recording when using 32GB P2 card in full frame rate DVCPRO HD.
• SD (480i) multi-codec recording in DVCPRO 50/DVCPRO/DV, with 16:9/4:3 aspect ratios.
• Multifunction P2 capabilities. Hot swapping (changing cards while recording), loop rec, pre-rec, one-shot rec, interval rec and variable frame rate recording capability.

• Standard HD/SD-SDI output terminal.
• XLR 2-channel audio input terminals supporting 48V phantom power supply, and MIC/LINE select.
• Manual Volume control for 2 channels.
• Large, tiltable viewfinder and 3.5” LCD monitor.
• Auto or manual operation of focus and aperture.
• Scene files, user buttons, 2 focus assist functions.
• IEEE 1394 and USB 2.0 terminals for PC interface.
• Composite output, component output (mini-D-terminal), timecode setting via IEEE 1394, and camera remote function.

Recording Format 59.94 Hz

DVCPRO HD
1080/59.94i
1080/29.97p (over 59.94i)
1080/23.98p (over 59.94i)
1080/23.98pA (over 59.94i)
720/59.94p
720/29.97pN
720/29.97p (over 59.94p)
720/23.98pN
720/23.98p (over 59.94p)

DVCPRO 50 / DVCPRO / DV
480/59.94i
480/29.97p (over 59.94i)
480/23.98p (over 59.94i)
480/23.98pA (over 59.94i)
