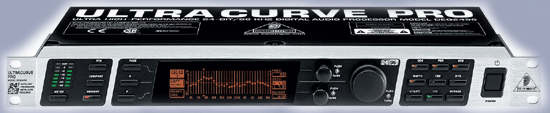

Ultra high-resolution processor for
all EQ, RTA and dynamic applications, especially for PA and
audiophile mastering
|
|
|
4 concurrently selectable EQ modules
(31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer
plus three Dynamic EQs per stereo channel)
|
|
|
Flexible Compressor/Expander function
with Peak Limiter per stereo channel as well as additional Stereo
Imager and Stereo Delay for delay line applications
|
|
|
Unique VPQ (Virtual Paragraphic EQ)
option allows parametric control of graphic EQs
|
|
|
Ultra high-resolution 61-band
real-time FFT Analyzer with additional auto EQ function for room
and loudspeaker equalization
|
 |
Multi-functional level meters (peak/RMS,
VU and SPL meter with dBA/dBC weighting via RTA mic input)
|
|
64 user memories for complete setups
and/or individual module configurations
|
|
Separate RTA mic/line input with
phantom power, professional wordclock input and MIDI connections
for full remote control, preset dumps and system updates
|
|
Ultra high-quality AKM® 24-bit/96 kHz
A/D- and D/A converters (113 dB dynamic range)
|
|
Open architecture allowing future
software updates via MIDI
|
|
Two high-performance 32/40-bit
floating-point SHARC® digital signal processors for ultimate
sonic resolution
|
|
Balanced inputs and servo-balanced
outputs with gold-plated XLR connectors, stereo aux output, AES/EBU
and S/PDIF inputs and outputs (XLR and optical)
|
|
Internal switch-mode power supply for
maximum flexibility (100 - 240 V~), noise-free audio, superior
transient response and lowest possible power consumption
|
|
Designed in Germany. Manufactured
under ISO9000 certified management system
|
