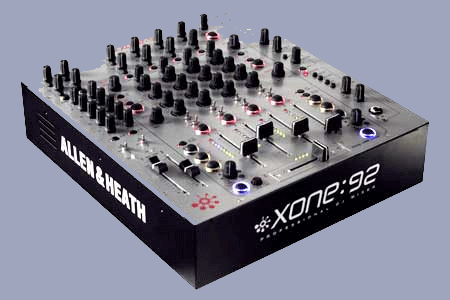

The Xone:92 represents the
culmination of everything we’ve learned from the DJ market. It’s the
result of something we’ve done since Day One - listening to DJ’s.
The result is a versatile mixer that promises to fulfill every wish list,
with features to suit all styles from breakbeat to techno, trance to house.
Connections Specification
Types
XLR male and female connectors:
Pin 2 = hot (+) Pin 3 = cold (-) Pin 1 = GND
TRS input and output connectors: Tip =
hot (+) Ring = cold (-) Sleeve = GND
RCA PHONO pin connectors
Input
CH1,2 In (Mic) Balanced XLR
female 2k ohm -45 to –15dBu
(gain - infinity to +15 dBu)
(Stereo Line) Unbalanced TRS jack >10k ohm -10 to +10dBu
(internal pad -20 to 0 dBu)
CH3,4,5,6 (Phono) RCA phono RIAA 47kohm/330pF 2 to 100mV
(Stereo Line) RCA Phono >10k ohm -10 to +10dBu
Output Connections Type Impedance Level
Mix Out 1 L,R (XLR) Balanced XLR male
<68 ohm 0dBu
Mix Out 2 L,R (jack) Impedance balanced TRS jack -2dBu
(Mix Levels = unity gain at max)
Record Out RCA phono <600 ohm -10dBV
Aux Out L,R 1&2 Impedance balanced
TRS jack <75 ohm -2dBu
Booth Out Impedance balanced TRS jack
<75 ohm +10dBu
Headphones (3.5mm and 1/4") Tip=L, Ring=R, 30 to 600 ohm recommended
Internal options include RIAA bypass,
input pad, clean feed disable, filter disable,
maximum resonance limit.
|
