Voted
Best Club Installation Mixer in the DJ Magazine Techno-Scan Awards 2002
& 2003
This purebred club mixer has truly raised the bar in terms of club audio
quality. It’s also quickly become the mixer of choice for many of the
world’s greatest DJs, thanks to its pristine sound, its phenomenal VCF
filters and its creative 4 band EQ. Club owners – if you want to know

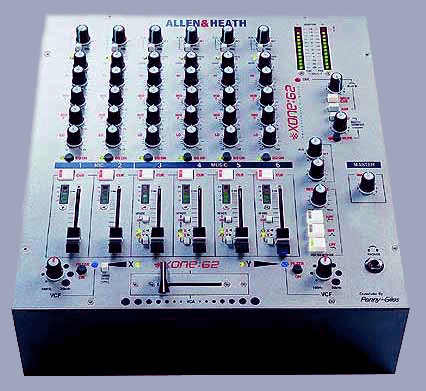

how good your big-money speaker system could sound, try it with a Xone:62.
Technical
Specs |
|
|
|
|
Technical
Specifications
0dBu = 0.775 Volts rms +4dBu = 1.23V rms
0dBV = 1 Volt rms -10dBV = 316mV rms
Maximum output level
XLR +26dBu into >2k ohm load
TRS jack +21dBu into >2k ohm load
RCA Phono +15dBu into >10K ohm load
Internal headroom
Channels +21dB
Mix to output +23dB
Peak indicators
Turn on 5dB before clipping
Meters
MIX /MONITOR Peak hold 12 LED 3 colour
STEREO CHANNEL Peak reading 4 LED 3 colour
Frequency response
20Hz to 40kHz +0/-1dB
Distortion THD+noise measured at +14dBu 1kHz
< 0.006%
Crosstalk channel shutoff measured at 1kHz
< 90dB
Noise measured rms 22Hz to 22kHz
MIC EIN -128dB referred to 150 ohm source
Residual output noise
XLR -90dBu (-94dB S/N)
TRS jack -84dBu (-84dB S/N)
L RCA -92dBu (-84dB S/N)
Mix noise, ch routed
XLR -86dBu (-90dB S/N)
TRS jack -82dBu (-82dB S/N)
RCA Phono -91dBu (-83dB S/N)
Power Supply Internal switch mode power unit
with auto sensing mains input.
MAINS IN socket IEC 3 pin
Power lead Country dependent with moulded mains plug
supplied
AC mains 100 to 240V AC @ 50/60Hz
Consumption 30W max
Mains fuse rating 100-240V AC T500mA
20mm
|
|
|
