Pathfinder 15 – 15-watt, 1 x 8" Combo
with Footswitchable Gain Boost & Tremolo
With the classic good looks of its bigger
brothers, the new 15-Watt, 1 x 8" Pathfinder 15 combo packs a
profusion of VOX style and sound into a highly compact and affordable
package. Like other family members, it sports typical VOX characteristics
like basket-weave vinyl, diamond grille cloth, white piping, gold beading
and, of course, ‘chicken head’ pointer knobs.
Performance Control
The Pathfinder 15 houses a wonderful sounding, vintage Tremolo effect and
is extremely versatile when it comes to tone. Its distinctive, maroon
coloured top panel features a Gain Boost switch plus controls for Volume,
Gain, Treble, Bass, Tremolo Speed and Tremolo Depth. Both the Gain Boost
and the built-in Tremolo are footswitchable via an optional, VOX VFS2 dual
footswitch, offering you even more performance power.
Bulldog Speakers and More
The Pathfinder 15 produces 15 Watts of power that drives a specially
voiced 8" VOX Bulldog speaker. In addition to a Headphone output that
mutes the internal speaker for ‘silent’ practice, the rear panel also
has a specially filtered Line Out jack for recording/live work and an
External Speaker output as well.
Pathfinder 15R – 15 Watt, 1 x 8"
Combo with Reverb, plus Footswitchable Gain Boost & Tremolo
The Pathfinder 15R is identical to the Pathfinder 15 but also features an
onboard Spring Reverb system with a Reverb control that adjusts the level
of the effect.
Dimensions: 396mm(w) x 400mm(h) x 193mm(d)
/ 15 1/2"(w) x 15 3/4"(h) x 7 5/8"(d)
Weight 8Kg / 17.7lbs
Pathfinder 15 Panel Layout
Pathfinder 15R Panel Layout
Top Panel Features
- Input Jack. Standard 1/4" jack for
guitar connection.
- Gain Control. Set higher for crunch and
distortion sounds and lower for cleaner tones.
- Boost Switch. Press in for more gain and
distortion. Press out for cleaner sounds. You can turn this function
on and off remotely with the optional VFS2 Footswitch.
- Volume Control. Controls the overall
volume. Set high for clean sounds. Lower the level when setting the
Gain control high for distortion.
- Treble Control. Adjusts the higher
frequencies or treble in your tone, from soft and full at one extreme
to bright and cutting at the other.
- Bass Control. Adjusts the lower
frequencies or bass in your tone, from warm and light at one extreme
to dark and heavy at the other.
- Tremolo Speed Control. Controls the
speed at which the built in tremolo oscillates. You can also control
the tremolo function remotely with the optional VFS2 Footswitch.
- Tremolo Depth Control. Controls the
intensity of the built in tremolo.
- Reverb Control (Only on Pathfinder 15R.)
This control enables you to vary the level of the built-in spring
Reverb.
- Power ON/OFF Switch & LED. On/Off
switch for mains (AC) power to amplifier. Plus power indicator LED.
Rear Panel Layout
Rear Panel Features
- Headphone Output Jack
The headphone jack on the rear panel mutes the built-in speaker and
lets the guitarist play "silently" at any time.
- Line Output Jack
Specially filtered line level signal output. This gives you a good
sounding signal for recording/live work without having to mic up the
amp.
- External Speaker Output Jack
For connection to an alternative speaker cabinet.
- Footswitch Jack
For connecting the optional VFS-2 Dual Footswitch with which you can
control switch both Boost and Tremolo functions on and off
independently.
Pointer Knobs and Vox Handle
|
 |
The Pathfinder's specially designed "Bulldog" speaker.
|
|
The Gold Logo, Basket Weave Vinyl, White Piping, Gold Facia
Strip and the Diamond Fret Cloth.
|

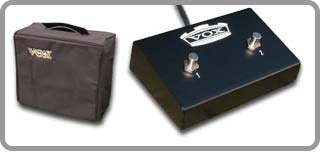

Options
 |
|
Custom Cover -
Optional Hi-quality custom amp cover.
Tailored to fit the Vox Pathfinder, Pathfinder 15, Pathfinder 15R
or Cambridge15.
Durably constructed with tear resistant seams.
Handsomely embroidered with the classic Vox logo.
VFS2 - Dual
footswitch for Pathfinder & Cambridge range.
Hi-quality durable all-metal construction.
|
|
