Probably the most famous guitar amplifier ever made. This is the most
faithful reissue to date utilising the original GZ34 valve rectifier.
The specifications of the Vox AC30/6 TB are the result of painstaking
research by our guitarists and engineers, who were not happy until they
re-created the amp that started it all. The result is a faithful
reproduction in sound and style of those pioneering Vox amps of the early
60s.
Control Panel
The AC30/6 TB control panel layout is the same as the original, even to
the point of being back to front! You will notice that we have added a
standby switch; this is intended to prolong the life of the valves, by
stopping the surge of electricity when the unit is switched on.

Valve Configuration
The valve line-up of the AC30/6 TB is as follows: Five ECC83s and one
ECC82 in the preamp stage, with four EL84s in the power stage operating in
Class A, plus a GZ34 rectifier valve in the power supply, for that unique
Vox tone and feel.
Design
The AC30 comes with original diamond fret cloth reproduction and Vox’s
famous basketweave vinyl covering, and the cabinet is made of birch ply
throughout, to original specifications. Other Vox cosmetic features, such
as the authentic Vox handles, are also true to the original. The vent
grilles have been enlarged to allow for improved ventilation. This
provides longer valve life and improves amplifier performance.

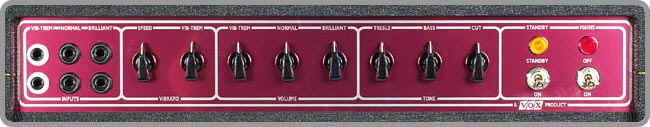

Top Panel Features
- Vib/Trem Inputs. Standard 1/4" jack
sockets for connection of the lead from the guitar. These two Inputs
are for the Vib/Trem channel only.
- Normal Inputs. Standard 1/4" jack
sockets for connection of the lead from the guitar. These two Inputs
are for the Normal channel only.
- Brilliant Inputs. Standard 1/4"
jack sockets for connection of the lead from the guitar. These two
Inputs are for the Brilliant channel only.
- Tremolo Speed Control. Controls the
speed at which the built in tremolo oscillates.
- Vib/Trem Switch. Selects either Vib or
Tremolo settings for the built-in tremolo. Selective Vib will decrease
the intensity of the tremolo.
- Vib/Trem Volume Control. Controls the
volume of the AC30's Vib/Trem channel.
- Normal Volume Control. Controls the
volume of the AC30's Normal channel.
- Brilliant Volume Control. Controls the
volume of the AC30's Brilliant channel.
- Treble Control. Adjusts the higher
frequencies or treble in your tone on the Brilliant channel, from soft
and full at one extreme to bright and cutting at the other.
- Bass Control. Adjusts the lower
frequencies or bass in your tone on the Brilliant channel, from warm
and light at one extreme to dark and heavy at the other.
- Cut Control. A variable tone control for
all channels, reduces high frequency content for a smoother tone.
- Standby Switch & Indicator. Controls
the H.T. supply to the valves and allows them to remain heated when
not in use. (Ideal for leaving the amp in a ready state during breaks).
Amber neon lamps indicate standby on.
- Power ON/OFF Switch & Indicator. On/Off
switch for mains (AC) power to amplifier. Red neon lamps indicate
power on.
|
