| Model |

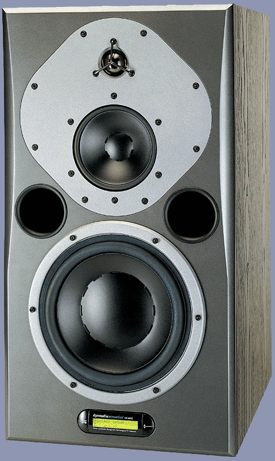

AIR 20 |
| AIR
Monitors (master and slave) |
- |
| System |
3 way
semiactive near field monitor |
| Total
frequency response |
31 Hz
–22 kHz: |
| Max SPL
1m pair (IEC Short term) |
131dB
peak |
| Max SPL
2m 5.1 (IEC Short term) |
129dB
peak |
| Precision
of monitor matching |
+/-
0.2 dB |
| Port
tuning frequency |
40 Hz |
| Internal
cabinet volume |
35
liters |
| Bass
principle |
Bass
reflex |
| Crossover
frequency |
390 Hz
and 2600 Hz |
| Crossover
slope |
12 dB/oct
and 6 dB/oct |
| Tweeter
unit |
Esotar
T 380D: 28 mm / 1.1" soft dome, neodymium magnet, rear
chamber, magnetic fluid, 4mm steel front, pure alu wire voice
coil |
| Midrange
unit |
145 mm
/ 5,5", one-piece molded polyprop cone, 38 mm / 1,5"
pure alu voice coil |
| Woofer |
240 mm
/ 9,5", one-piece molded polyprop cone, 100 mm / 4"
pure alu voice coil |
| Mains
Voltage |
100 to
240 VAC, 50 to 60 Hz (auto-select) |
| Power
Consumption Idle |
50 W /
Max: 375 W |
| Finish
Amp |
Black
painted back plate |
| Finish
Cabinet |
Black
ash with dark gray MDF baffle |
| Dimensions
(H x W x D) |
575 x
310 x 395 mm |
| Depth
incl. amp and driver |
432 mm |
| Weight |
28 kg |
| Amplifiers |
- |
| Midrange/Tweeter |
Separate
200 W PWM amp |
| Woofer |
Separate
200 W PWM amp |
| System
sample rates |
- |
| Internal
sample rate |
96 kHz
(except when slaved to digital input or Word clock Input) |
| External
sample rate |
96,
88.2, 64, 48, 44.1 or 32 kHz |
| AIR
Masters only |
- |
| I/O
Connectors |
XLR (2
channels AES/EBU in) 3 x RJ45 proprietary TC LINK |
| Formats |
AES/EBU
(24 bit) |
| Word
clock input |
BNC,
75 ohm, 0.6 to 10 Vpp |
| Display |
2 x 16
character dot matrix |
| Operation |
Menu
system / four buttons |
| Analog
input option |
- |
| Input
connectors |
XLR
balanced (pin 2+, pin 3-) |
| Impedance |
10/3
kohm (Balanced/unbalanced): |
| Selectable
Full Scale Input level |
+9,
+15, +21, +27 dBu |
| Dynamic
Range |
>
113 dB typ. (unweighted), BW: 20-20kHz |
| THD+N |
<
-105 dB typ. @ 1 kHz, -3 dBFS |
| Crosstalk |
<
-120 dB, 20 Hz to 20 kHz |
| A to D
Conversion |
24 bit
(Dual bit delta sigma sampling at 4.1/5.6/6.1/6.1 MHz) |
| AIR
Slaves only |
- |
| I/O
Connectors |
2 x
RJ45 proprietary TC LINK |
| General |
- |
| EMC |
- |
| Complies
with |
EN
55103-1 and EN 55103-2, FCC part 15 class B, CISPR 22 class B |
| Safety |
- |
| Certified
to |
IEC
60065, EN 60065, UL 6500 and CSA E60065 CSA FILE #LR108093 |
| Environment |
- |
| Operating
Temperature |
32° F
to 122° F (0° C to 50° C) |
| Storage
Temperature |
-22°
F to 167° F (-30° C to 70° C) |
| Humidity |
Max.
90 % non-condensing |
