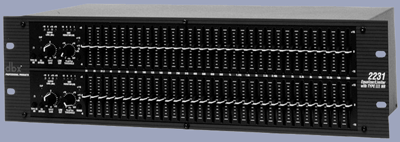

Эквалайзер недорогой серии 20, во
многом идентичной по параметрам
знаменитой серии 30. Новое
семейство эквалайзеров dbx
отличается наличием
регулируемых лимитеров на
каждом канале. Кроме того,
имеется система шумоподавления
на основе динамического фильтра,
существенно снижающая шумы даже
при экстремальных положениях

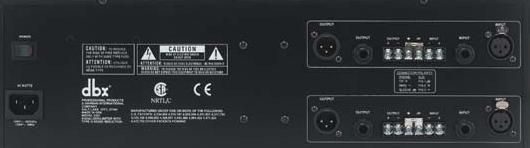

движков. Симметричные входы и
выходы (XLR, 6.3 мм phono jack и зажимные
винты).
|
INPUT
|
|
Connectors:
|
1/4"
TRS, female XLR (pin 2 hot), and barrier terminal strip
|
|
Type:
|
Electronically
balanced/unbalanced, RF filtered
|
|
Impedance:
|
Balanced
40k ohm, unbalanced 20k ohm
|
|
Max
Input Level:
|
>+21dBu
balanced or unbalanced
|
|
CMRR:
|
>40dB,
typically >55dB at 1kHz
|
|
OUTPUTS
|
|
Connectors:
|
1/4"
TRS, male XLR (pin 2 hot), and barrier terminal strip
|
|
Type:
|
Impedance-balanaced/unbalanced,
RF filtered
|
|
Impedance:
|
Balanced
200 ohm, unbalanced 100 ohm
|
|
Max
Output Level:
|
>+21dBu
balanced/unbalanced into 2k or greater
>+20dBm balanced/unbalanced (into 600)
|
|
SYSTEM
PERFORMANCE
|
|
Bandwidth:
|
20Hz
to 20kHz, +/-0.5dB
|
|
Frequency
Response:
|
<10Hz
to >50kHz, +0.5/-3dB
|
|
Noise
Reduction In:
|
(+/-6
and +/-12dB range):
|
|
Signal-to-Noise:
|
>102dB,
unweighted, ref: +4dBu, 22kHz measurement bandwidth
|
|
Dynamic
Range:
|
>120dB,
unweighted
|
|
Noise
Reduction Out:
|
(+/-6dB
range):
|
|
Signal-to-Noise:
|
>94dB,
unweighted, ref: +4dBu, 22kHz measurment bandwidth
|
|
Dynamic
Range:
|
>112dB,
unweighted
|
|
Noise
Reduction Out:
|
(+/-12dB
range):
|
|
Signal-to-Noise:
|
>90dB,
unweighted, ref: +4dBu, 22kHz measurement bandwidth
|
|
Dynamic
Range:
|
>108dB,
unweighted
|
|
THD
+ Noise:
|
<0.04%,
0.02% typical at +4dBu, 1kHz
|
|
Interchannel
Crosstalk:
|
<-80dB,
20Hz to 20kHz
|
|
Noise
Reduction:
|
Up
to 20dB of dynamic broadband noise reduction
|
|
FUNCTION
SWITCHES
|
|
Type
III® NR:
|
Activates
dbx® Type III® Noise Reduction
|
|
EQ
Bypass:
|
Bypasses
the Graphic Equalizer section in the signal path
|
|
Low
Cut (recessed):
|
Activates
the 40Hz 18dB/octave Bessel high-pass filter
|
|
Range
(recessed):
|
Selects
either +/- 6dB or +/-15dB slider boost/cut range
|
|
INDICATORS
|
|
Output
Level Meter:
|
4-LED
bar graph (Green, Green, Yellow, Red) at -10, 0, +10,
and +18dBu
|
|
Gain
Reduction Meter:
|
4-LED
bar graph (all Red) at 0, 3, 6, and 10dB
|
|
Type
III® NR Active:
|
Yellow
LED
|
|
EQ
Bypass:
|
Red
LED
|
|
Clip:
|
Red
LED
|
|
Low
Cut Active:
|
Red
LED
|
|
+/-6dB
range:
|
Yellow
LED
|
|
+/-12dB
range:
|
Red
LED
|
|
POWER
SUPPLY
|
|
Operating
Voltage:
|
100VAC
50/60Hz, 120VAC 60Hz
230VAC 50/60Hz
|
|
Power
consumption:
|
23W
|
|
Main
Connection:
|
IEC
receptacle
|
|
PHYSICAL
|
|
Dimensions:
|
5.25"
H X 19" W X 7.9" D (8.9cm x 48.3cm x 20.1cm)
|
|
Note:
Specifications subject to change without notice.
|
