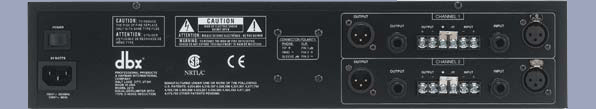

INPUT
|
Connectors:
|
1/4" TRS,
female XLR (pin 2 hot), and barrier terminal strip
|
Type:
|
Electronically balanced/unbalanced,
RF filtered
|
Impedance:
|
Balanced 40k ohm,
unbalanced 20k ohm
|
Max Input Level:
|
>+21dBu balanced or
unbalanced
|
CMRR:
|
>40dB, typically
>55dB at 1kHz
|
OUTPUTS
|
Connectors:
|
1/4" TRS,
male XLR (pin 2 hot), and barrier terminal strip
|
Type:
|
Impedance-balanaced/unbalanced,
RF filtered
|
Impedance:
|
Balanced 200 ohm,
unbalanced 100 ohm
|
Max Output Level:
|
>+21dBu
balanced/unbalanced into 2k or greater
>+18dBm balanced/unbalanced (into 600)
|
SYSTEM PERFORMANCE
|
Bandwidth:
|
20Hz to 20kHz, +/-0.5dB
|
Frequency Response:
|
<10Hz to >50kHz,
+0.5/-3dB
|
Noise Reduction In:
|
(+/-6 and +/-15dB
range):
|
Signal-to-Noise:
|
>102dB,
unweighted, ref: +4dBu, 22kHz measurement bandwidth
|
Dynamic Range:
|
>120dB,
unweighted
|
Noise Reduction Out:
|
(+/-6dB range):
|
Signal-to-Noise:
|
>94dB,
unweighted, ref: +4dBu, 22kHz measurment bandwidth
|
Dynamic Range:
|
>112dB,
unweighted
|
Noise Reduction Out:
|
(+/-15dB range):
|
Signal-to-Noise:
|
>90dB,
unweighted, ref: +4dBu, 22kHz measurement bandwidth
|
Dynamic Range:
|
>108dB,
unweighted
|
THD + Noise:
|
<0.04%, 0.02%
typical at +4dBu, 1kHz
|
Interchannel Crosstalk:
|
<-80dB, 20Hz to
20kHz
|
Noise Reduction:
|
Up to 20dB of dynamic
broadband noise reduction
|

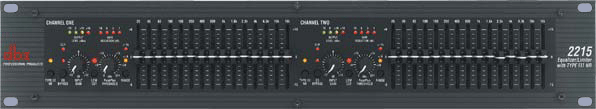

FUNCTION SWITCHES
|
Type III NR:
|
Activates dbx® Type
III® Noise Reduction
|
EQ Bypass:
|
Bypasses the Graphic
Equalizer section in the signal path
|
Low Cut (recessed):
|
Activates the 40Hz
18dB/octave Bessel high-pass filter
|
Range (recessed):
|
Selects either +/- 6dB
or +/-15dB slider boost/cut range
|
INDICATORS
|
Output Level Meter:
|
4-LED bar graph (Green,
Green, Yellow, Red) at -10, 0, +10, and +18dBu
|
Gain Reduction Meter:
|
4-LED bar graph (all
Red) at 0, 3, 6, and 10dB
|
Type III® NR Active:
|
Yellow LED
|
EQ Bypass:
|
Red LED
|
Clip:
|
Red LED
|
Low Cut Active:
|
Red LED
|
+/-6dB range:
|
Yellow LED
|
+/-15dB range:
|
Red LED
|
POWER SUPPLY
|
Operating Voltage:
|
100VAC 50/60Hz, 120VAC
60Hz
230VAC 50/60Hz
|
Power consumption:
|
18W
|
Main Connection:
|
IEC receptacle
|
PHYSICAL
|
Dimensions:
|
3.5" H X 19"
W X 7.9" D (8.9cm x 48.3cm x 20.1cm)
|
Weight:
|
8.5 lbs. (3.9 kg)
|
Shipping Weight:
|
9.5 lbs. (4.3 kg)
|
Note: Specifications
subject to change without notice.
|
