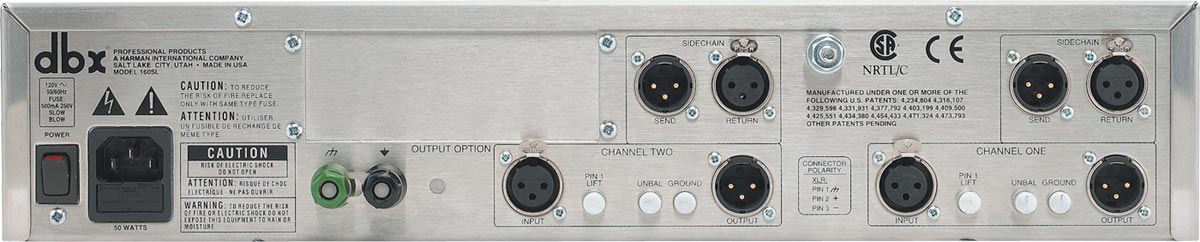

| INPUTS |
| Connectors: |
Female XLR Pin
2 hot, pin 1 lift switch |
| Type: |
Electronically
balanced/unbalanced, RF filtered |
| Impedance: |
Balanced >
20 k ohm, unbalanced > 10 k ohm |
| Maximum Input
Level: |
>+30dBu
balanced, > +26dBu unbalanced |
| CMRR: |
>100dB 20
Hz to 200 Hz, >80dB 200 Hz to 2 kHz, >60dB 2 kHz to 20 kHz |
| OUTPUTS |
| Connectors: |
Male XLR Pin 2
hot |
| Type: |
Transformer
balanced/unbalanced, RF filtered. |
| Impedance: |
Balanced
50ohm, unbalanced 25ohm |
| Maximum Output
Level: |
Bal >+30dBm
(into 600 ohm). Unbalanced (with UNBAL switch engaged) >+24dBm (into
600 ohm). |
| SIDECHAIN
SEND (OUTPUT) |
| Connector: |
Male XLR Pin 2
hot |
| Type: |
Unbuffered,
hard-wired to INPUT, RF filtered |
| SIDECHAIN
RETURN (INPUT) |
| Connector: |
Female XLR Pin
2 hot |
| Type: |
Electronically
balanced/unbalanced, RF filtered |
| Impedance: |
Balanced
>20 k ohm, unbalanced >10k ohm |
| Maximum Input
Level: |
>+30dBu
balanced or unbalanced |
| SYSTEM
PERFORMANCE |
| 0.1dB
Bandwidth: |
20 Hz to 20
kHz +0/-0.1dB, no gain reduction, unity gain |
| 1.0dB
Bandwidth: |
<4 Hz to
>40 kHz +0/-1.0dB, no gain reduction, unity gain |
| Frequency
Response: |
<2 Hz to
>200 kHz +0/-3.0dB, no gain reduction, unity gain |
| Noise: |
<-92dBu,
unweighted, 20 Hz to 20 kHz measurement bandwidth |
| Dynamic Range: |
>122dB |
| THD
+ Noise: |
0.008% typical
at +4dBu, 1kHz, unity gain |
| 0.05% typical
at +30dBu, 1kHz, unity gain |
| <0.1% any
amount of compression up to 30dB, 1kHz |
| IMD: |
<0.02%
SMPTE 4:1, no gain reduction, unity gain |
| Deviation From
Linear Phase: |
<1.0 degree,
<10 Hz to 200 kHz, 30dB of compression |
| Interchannel
Crosstalk: |
<-100dB, 20
Hz to 20 kHz |
| VCA: |
dbx V8™ |
| VCA Dynamic
Range: |
>127dB |
| VCA THD +
Noise: |
0.006% typical
at +4dBu, 1 kHz, unity gain |
| Stereo
Coupling: |
True RMS Power
Summing™ |
| COMPRESSOR |
| Threshold
Range: |
-40 to +30dBu |
| Ratio: |
1:1 to 4:1 |
| Threshold
Characteristic: |
Selectable
OverEasy® or hard knee |
| Attack/Release
Modes: |
Selectable
Manual or Auto |
| Manual Attack
Time: |
Scalable
program-dependent. Typically 400dB/msec to 1dB/msec |
| Manual Release
Time: |
Scalable
program-dependent. Typically 4000dB/sec to 10dB/sec |
| Auto Attack
Time: |
Program-dependent,
typically 15 ms for 10dB, 5 ms for 20dB, 3 ms for 30dB |
| Auto Release
Time: |
Program-dependent,
typically 120dB/sec |
| Output Gain: |
-20 to +20dB |
| LIMITER |
| Threshold
Range: |
+4dBu to
>+30dBu (off) |
| Ratio: |
4:1 |
| Limiter Type: |
PeakStopPlus®
two-stage limiter |
| Stage 1: |
Instantaneous
Transient Clamp |
| Attack Time: |
Zero |
| ReleaseTime: |
Zero |
| Stage 2: |
Intelligent
Predictive Limiting |
| Attack Time: |
Program
dependent, typically <5 msec. |
| Release Time: |
Program
dependent, typically 22dB/sec |
| PHYSICAL |
| Dimensions: |
3.5” H X
19” W X 11.25” D |
| Weight: |
20.5 lbs (9.3
kg) |
| Shipping
Weight: |
25.0 lbs (11.3
kg) |
| Note:
0 dBu = 0.775V RMS. |
| Specifications
are subject to change without notice. |
