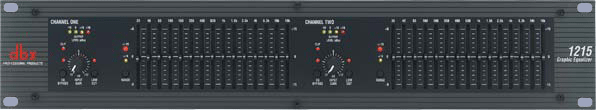

INPUT
|

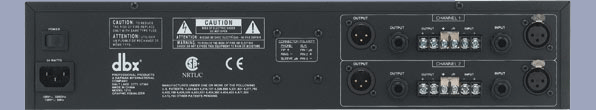

Connectors:
|
1/4" TRS, female
XLR (pin 2 hot), and barrier terminal strip
|
Type:
|
Electronically balanced/unbalanced,
RF filtered
|
Impedance
|
Balanced 40 kOhm,
unbalanced 20 kOhm
|
Maximum Input Level:
|
>+21dBu balanced or
unbalanced
|
CMRR:
|
>40dB, typically
>55dB at 1kHz
|
OUTPUTS
|
Connectors:
|
1/4" TRS, male XLR
(pin 2 hot), and barrier terminal strip
|
Type:
|
Impedance-balanaced/unbalanced,
RF filtered
|
Impedance:
|
Balanced 200 ohm,
unbalanced 100 ohm
|
Max Output Level:
|
>+21dBu balanced/unbalanced
into 2 kOhm or greater
>+18dBm balanced/unbalanced (into 600 ohm)
|
SYSTEM PERFORMANCE
|
Bandwidth:
|
20Hz to 20kHz,
+0.5/-1dB
|
Frequency Response:
|
<10Hz to >50kHz,
+0.5/-3dB
|
|
+/-15dB range
|
+/-6dB range
|
Dynamic Range:
|
109dB
|
115dB
|
Signal-to-Noise:
|
90dB
|
97dB
|
THD + Noise:
|
<0.005%
|
Interchannel Crosstalk:
|
<-80db, 20Hz to
20kHz
|
FUNCTION SWITCHES
|
EQ Bypass:
|
Bypasses the graphic
equalizer section in the signal path
|
Low Cut (recessed):
|
Activates the 40Hz
18dB/octave Bessel high-pass filter
|
Range (recessed):
|
Selects either +/- 6dB
or +/- 15dB slider boost/cut range
|
INDICATORS
|
Output Level Meter:
|
4-LED bar graph (Green,
Green, Yellow, Red) at -10, 0, +10, and +18dBu
|
EQ Bypass:
|
1 LED: Red
|
Clip:
|
1 LED: Red
|
Low Cut:
|
1 LED: Red
|
+/-6dB:
|
1 LED: Yellow
|
+/-15dB:
|
1 LED: Red
|
POWER SUPPLY
|
Operating Voltage:
|
100VAC 50/60Hz,
120VAC 60Hz
230VAC 50/60Hz
|
Power consumption:
|
24W
|
Main Connection:
|
IEC receptacle
|
PHYSICAL
|
Dimensions:
|
3.5" H X
19" W X 7.9" D (8.9cm x 48.3cm x 20.1cm)
|
Weight:
|
8.5 lbs. (3.9 kg)
|
Shipping Weight:
|
9.5 lbs. (4.3 kg)
|
Note: Specifications
subject to change without notice.
|
