Ключевые возможности Matrox MXO2 Rack:
• Прочный промышленный корпус 2RU
• Входы и выходы: HD/SD SDI, HD/SD analog component, Y/C и composite
• Сквозной интерфей синхронизации - SD analog black burst (bi-level) или HD tri-level sync
• Вход и выход HDMI с возможностью калибровки, включая "blue-only"
• 10-битовая аппаратная конверсия up/down/cross
• До пяти одновременно выбираемых пользователем выходов видео - HD и/или SD на HDMI, SDI и аналогвых
• Профессиональные звуковые входы и выходы с многоканальным контролем до "7.1 surround sound"
- 4-входа, 8-выходов балансного XLR
- 4-входа, 4-выхода небалансного AES/EBU
- 8-входов, 8-выходов SDI и HDMI embedded
• Управление магнитофоном по RS-422 для записи и вывода с покадровой точностью
• Запись в различные кодеки - Apple ProRes 422 HQ, 10-bit uncompressed HD и многие другие
• Поддержка на файловом уровне - XDCAM, XDCAM HD, XDCAM EX, P2
• Работает с Final Cut Pro, Apple Color и всеми приложениями QuickTime, поддерживающими V-out component
• Совместимо с Intel-based MacBook Pro и Mac Pro
Key features
- Works with Intel-based Mac Pros and
MacBook Pros
- Rugged 2RU form factor
- HD/SD SDI, HD/SD analog component, Y/C,
and composite inputs and outputs
- Genlock with loop through - SD analog
black burst (bi-level) or HD tri-level sync
- HDMI input, output, and monitoring
with calibration controls including blue-only
- 10-bit realtime hardware up/down/cross
conversion on ingest and output
- Up to five user selectable
simultaneous video outputs - HD and/or SD on HDMI, SDI, and analog
- Professional audio inputs and outputs
including 5.1 and 7.1 surround sound monitoring
- 4-in, 8-out balanced XLR
- 4-in, 4-out unbalanced AES/EBU
- 8-in, 8-out SDI and HDMI embedded
- RS-422 machine control for
frame-accurate capture and print-to-tape
- Captures to a variety of codecs -
Apple ProRes 422 HQ, 10-bit uncompressed HD, and many more
- Supports file-based workflows - XDCAM,
XDCAM HD, XDCAM EX, P2, P2HD
- Works with Final Cut Pro, Apple Color,
Adobe After Effects and all QuickTime applications that support the
V-out component
HD and SD inputs and outputs
Matrox MXO2 Rack features a full
complement of professional inputs and outputs. RS-422 machine control is
provided for frame-accurate capture and print-to tape with Final Cut Pro.
Inputs
Video
- SDI - HD/SD
- Component - HD/SD
- Y/C
- Composite
- HDMI - HD
Audio
- 4 XLR - stereo pair (balanced)
- 4 AES/EBU
- SDI embedded - up to 8 channels
- HDMI embedded - up to 8 channels
Outputs
Video
- 2 SDI - HD/SD
- Component - HD/SD - 12-bit
- Y/C - 12-bit
- Composite - 12-bit
- HDMI - HD/SD
Audio
- 8 XLR - stereo pair (balanced)
- 4 AES/EBU
- SDI embedded - up to 8 channels
- HDMI embedded - up to 8 channels
Up to five user selectable simultaneous video outputs, HD and/or SD on
HDMI, SDI, and analog are supported.
Genlock
Matrox MXO2 Rack provides SD analog black
burst (bi-level) or HD tri-level sync genlock. It can genlock to any
type of video input or to house sync. Timing offset controls can be used
to align your video output relative to your external genlock source to
compensate for cable delays within your facility. Loop through is
supported.
Flexible workflows
Capture to a variety of codecs
Matrox MXO2 Rack gives you a wide range
of workflow possibilities by providing frame-accurate capture via RS-422
deck control to a variety of codecs. On systems with a 2.4 GHz or faster
Core2 Duo CPU you can capture to DVCPRO HD and to SD codecs including
uncompressed, DV, DVCPRO, DVCPRO50, ProRes 422, and ProRes 422 HQ. On
systems with at least two Dual-Core or a Quad-Core 2.4 GHz or faster CPU
you can also capture to more HD codecs including ProRes 422 and ProRes
422 HQ. On systems equipped with storage that has sufficient transfer
bandwidth, you can capture uncompressed 8- and 10-bit HD.
Use your favorite file-based formats
Matrox MXO2 Rack lets you work with
file-based formats such as XDCAM, XDCAM HD, XDCAM EX, P2, and P2HD. You
can play out these formats directly from Final Cut Pro - no intermediate
codec is needed.
Flexible workflows
Capture to a variety of codecs
Matrox MXO2 Rack gives you a wide range
of workflow possibilities by providing frame-accurate capture via RS-422
deck control to a variety of codecs. On systems with a 2.4 GHz or faster
Core2 Duo CPU you can capture to DVCPRO HD and to SD codecs including
uncompressed, DV, DVCPRO, D VCPRO50,
ProRes 422, and ProRes 422 HQ. On systems with at least two Dual-Core or
a Quad-Core 2.4 GHz or faster CPU you can also capture to more HD codecs
including ProRes 422 and ProRes 422 HQ. On systems equipped with storage
that has sufficient transfer bandwidth, you can capture uncompressed 8-
and 10-bit HD.
Use your favorite file-based formats
Matrox MXO2 Rack lets you work with
file-based formats such as XDCAM, XDCAM HD, XDCAM EX, P2, and P2HD. You
can play out these formats directly from Final Cut Pro - no intermediate
codec is needed.
Matrox MXO2 Rack kit contents

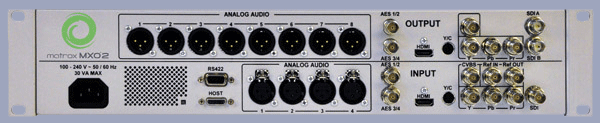

Matrox MXO2 Rack input/output device
Matrox MXO2 PCIe host adapter (for use
with Mac Pro)
Matrox MXO2 PCIe cable (3 meter)
(IEC-C13 power cord appropriate for your
region, optional RS422 cable, and optional Matrox MXO2 ExpressCard/34
adapter for use with MacBook Pro must be purchased separately)
|
