Аналоговый
компонентный вход. Поддержка форматов:
1080/60i, 1080/50i, 1080/48i, 720/60p, 480/60p, 480/60i, 576/50p,
576/50i
Выбор строки. Stereo Phase/Amplitude измерение.

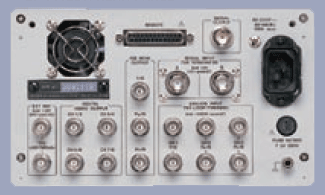

• Two
Serial Digital Input Systems And One Output System
Serial digital signal input systems conform to SMPTE 292M, and BTA
S-004B standards; active SDI output system to resend the selected SDI
input.
• Analog
Signal Input System (Y, PB, PR or GBR)
The analog input system enables the monitoring and then the comparison
of the analog to digital signals in waveform, vector and picture modes.
Full bandwidth Y, PB, PR may be transcoded and output as GBR.
• Digital
Data Dump (LV 5152DA only)
Since parallel digital video data can be displayed in hexadecimal format,
the trigger on error is convenient to troubleshoot with.
• Equivalent
Cable Length Measurement
Indicates the serial digital signal level applied to the input connector
as the coaxial cable length instead of the actual level.
• Digital
Audio Output Conforms To SMPTE 276M
Digital audio signals are
separated from the serial digital signal and output as four AES/EBU
pairs.
• Digital
Input Error Monitoring
Error logger and contents display functions for HD-SDI are provided.
• Gamut
Error Monitoring
Monitors incorrect level of
signals converted from Y, PB, PR into GBR format.
• Vectorscope
(SMPTE 240M, 274M)
Displays color difference signals
in vector format. The HD-SDI signal is decoded to analog GBR, converted
into color difference signals with a matrix and displayed in vector
format.
• Picture
Monitor Output
SDI signals go through a D/A
converter to a component analog signal, which is then output to the
picture monitor. Y, PB, PR or G, B, R formats can be selected to match
monitor input requirements.
Component analog signals can be monitored and output as Y, PB, PR or
transcoded to GBR.
• Conversion
Matrix, Y, PB, PR Into GBR (SMPTE 240M, 274M)
Selectable waveform format of Y, PB, PR to GBR simplifies signal level
monitoring. Additionally, GBR parade order is selectable as RGB.
• Full-line
Selector Mode
Enables the selection and display
of video lines from field 1 or 2 or both fields. Since up to 15 lines
can be displayed, the waveform is refreshed and displayed with
sufficient intensity.
• Measurements
Using Cursors
Level, time and frequency
measurements are accomplished with 0.5% accuracy.
• Lissajous
Display For Stereo Audio Signal
Analog stereo audio signals can
be displayed in standard X-Y lissajous format.
• Preset
Memory Function
Stores/recalls up to 10 panel
settings to reduce setup time by presetting frequently used measurement
conditions.
• Timing
Display
The timing display mode can monitor time and amplitude differences
between channels in analog and digital modes.
|
