HDSTORM & HDSTORM Plus (with Bay)

Canopus

HDSTORM � HDMI-based Editing
A single PCI Express form factor board and packaged with a full version* of the latest EDIUS editing software, HDSTORM allows you to work with HDMI inputs and outputs, and has a Canopus HQ hardware codec built-in for optimized, CPU-free capture and export of files.

HDSTORM empowers you with constantly synched, full-resolution preview of effects and content directly from the EDIUS timeline. The power of having the Canopus HQ codec on-board means you won�t be restricted by CPU speeds or workstation limitations when ingesting or creating high-quality Canopus HQ AVI files for editing. Keeping the compression processing separate from your CPU brings new reliability and system performance to the editing and effects creation environment.

Working as a perfect combination of software and hardware, HDSTORM can handle any mix of HD and SD video content; unlimited video, audio, title, and graphics layers; and any combination of real-time effects.

If you are still making the transition to an all-digital, high-definition workflow, you can purchase the optional HDSTORM Bay at any time, to add a comprehensive set of analog inputs and outputs. The HDSTORM Bay is included as standard with the full HDSTORM Plus package (see Options).

* TitleMotion Pro for EDIUS is not included in the software bundled with HDSTORM

HDSTORM: Key Features

  • HDMI input/output for connectivity with HDMI devices and real-time monitoring from the included EDIUS editing software
  • Works with many different native video formats, including DV, HDV, AVCHD, uncompressed, and more
  • Real-time SD/HD resolution, aspect ratio and frame rate conversion and output, including 16:9 to 4:3 and NTSC to PAL
  • Real-time SD/HD effects, keyers, transitions and titles
  • Supports newer file-based formats, including Infinity JPEG 2000, XDCAM and XDCAM EX, P2 (DVCPRO and AVC-Intra), and GFCAM
  • Onboard Canopus HQ hardware encoder for fast, high-quality capture and export of video to Canopus HQ AVI files

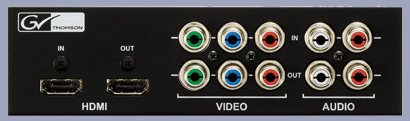

  • Bay option for HD/SD analog component, S-Video, and composite input/output (included as standard with HDSTORM Plus)
  • Compatible with Windows� XP and Windows Vista

HDSTORM: Specifications

Package Contents (HDSTORM):
  • HDSTORM (HQX-E1) PCI Express x1 bus card
  • EDIUS software installation disc set (DVD-ROM)
  • EDIUS USB dongle
  • EDIUS QuickStart guide
  • Hardware setup manual

Package Contents (HDSTORM Bay):
  • 5.25-inch HDSTORM Bay
  • HDSTORM Bay connector cable
  • 2 x miniDIN to RCA converter cables (S-Video to composite)
Technical Specifications
Video Input
  • 1 x HDMI� Connector (HDCP not supported)

Video Output
  • 1 x HDMI Connector (HDCP not supported)

Audio Input
  • 1 x HDMI (LPCM 8-channel)

Audio Output
  • 1 x HDMI (LPCM 8-channel)
  • 1 x stereo (3.5mm, unbalanced)

Video Input and Output Formats (CEA-861D)**
  • 1920 x 1080/59.94i
  • 1920 x 1080/50i
  • 1280 x 720/59.94p
  • 1280 x 720/50p
  • 720 x 480/59.94p
  • 720 x 576/50p
  • 720 x 480/59.94i
  • 720 x 576/50i

** HDSTORM does not support 1920 x 1080 59.94p/50p (i.e. 3Gbps) data

Audio Input and Output Formats
  • LPCM 48/44/32 kHz, 24-bit 8-channel

Onboard Encoding Resolutions (Canopus HQ)
  • 1920 x 1080
  • 1440 x 1080(1920 2/3 pixel aspect ratio)
  • 1280 x 1080 (1920 3/4 pixel aspect ratio)
  • 1280 x 720
  • 960 x 720 (1280 2/3 pixel aspect ratio)
  • 720 x 576
  • 720 x 480

For a list of supported analog formats for the HDSTORM Bay/HDSTORM Plus, please see the Options for HDSTORM.

Minimum System Requirements
HDSTORM is capable of editing both SD and HD content in real time, however the system requirements for real-time HD editing are significantly higher than for SD editing. The requirements shown here are for real-time HD editing.

  • Intel or AMD CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended. SSE2 and SSE3 instruction set supported)
  • 1 GB RAM (2 GB or more recommended)
  • One free PCI Express x1 slot
  • 800 MB free disk space
  • DVD-ROM drive for software installation
  • ATA100/7200 rpm or faster hard disk, capable of sustaining at least 20 MB/sec data transfer. A RAID stripe set of two or more hard disk drives is required for multiple HD stream output
  • Graphics card with at least 256 MB of graphics memory (512 MB recommended) with support for PixelShader Model 3.0 or later(i.e. DX9-based)
  • One free 5.25-inch mounting bay (required if using the HDSTORM Bay)
  • Windows� XP Home or Windows� XP Professional (32-bit, Service Pack 2 or later), or Windows Vista (32-bit�, Service Pack 1 or later)
  • One free USB (1.1 or higher) port for security key
  • Soundcard


� Windows Vista 64-bit driver support for HDSTORM is anticipated to be announced Q1 2009


For additional information on compatible motherboards and graphics cards, view the EDIUS Hardware Compatibility list.





����� � ����������
