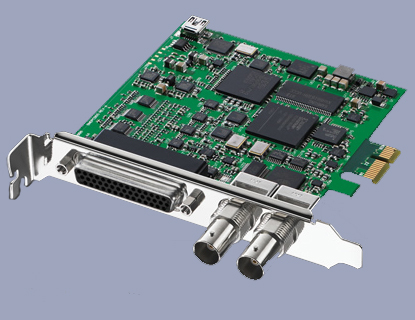

Blackmagic DeckLink™
Studio |
|
| SDI Video Input |
1 x 10 bit SD/HD
switchable. |
1 x 10 bit SD/HD switchable. |
| SDI Video Output |
1 x 10 bit SD/HD
switchable.
1 x 10-bit SD only, down converted or key. |
1 x 10 bit SD/HD switchable. |
| Supported Video formats |
525i NTSC, 625i
PAL, 720HD and 1080HD. |
525i NTSC, 625i PAL, 720HD and
1080HD. |
| Analog Video Input |
1 x Component
video on 3 BNCs.
1 x S-Video video on S-Video connector.
1 x Composite NTSC/PAL on 1 BNC. |
None |
| Analog Video Output |
1 x Component
video on 3 BNCs.
1 x S-Video video on S-Video connector.
1 x Composite NTSC/PAL on 1 BNC. |
None |
| AES/EBU Audio Input |
2 channel
unbalanced AES/EBU digital audio with sample rate converter. |
None |
| AES/EBU Audio Output |
2 channel
unbalanced AES/EBU digital audio.
Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3
& 4 and 5 & 6 output. This provides a total of 6 AES/EBU
audio channels out when using this feature. |
None |
| SDI Audio Input |
8 channel embedded in
SD and HD. |
| SDI Audio Output |
8 channel embedded in
SD and HD. |
| Analog Audio Input |
4 channels of
professional balanced analog audio via 1/4” jack connectors. |
None |
| Analog Audio Output |
4 channels of
professional balanced analog audio via 1/4” jack connectors.
Channels 3 and 4 can switch to AES/EBU outputs. |
None |
| Multiple Rate support |
Standard definition
SDI and high definition SDI. |
| Sync Input |
Blackburst in SD and
1080i50, 720p50, 1080i59.94, 720p59.94 HD formats or TriSync in
all HD formats. |
| Device Control |
Sony™ compatible
RS422 deck control ports.
Serial ports TxRx direction reversible under software control. |
| Settings Control |
DeckLink System
Preferences (Intel Mac OS X™) and DeckLink Control Panel (Windows™). |
| Updates |
Firmware for cards
built into software driver. Loaded at system start, or via
updater software. |
| HD Format Support |
1080PsF23.98/24,
1080i50, 1080i59.94, 720p50 and 720p59.94. |
| SD Format Support |
625/25 PAL, 525/29.97
NTSC and 525/23.98 NTSC. |
| SDI Compliance |
SMPTE 259M, 292/296M. |
| Video Sampling |
4:2:2 |
4:2:2 |
| Color Precision |
4:2:2 10-bit |
4:2:2 10-bit |
| Color Space |
4:2:2 YUV |
4:2:2 YUV |
| SDI Metadata Support |
VITC read for 3:2
pulldown removal.
VANC capture and playback using up to 3 lines of video in file.
HD RP188. |
| Audio Sampling |
Television rate of
48kHz at 24 bit. |
| Card type |
PCI Express 1 lane,
compatible with 1,4,8 and 16 PCIe slots. |
| Copy Protection |
For legal reasons,
capture devices from Blackmagic Design are designed not to
capture, convert or transmit video or audio from copy-protected
sources, e.g. video devices using HDCP. |
| Colorspace Conversion |
Hardware based real
time. |
| HD Down Conversion |
Built in hardware
down conversion.
High quality down converter always output to SD-SDI, Composite
and S-Video outputs when working in HD video formats. Selectable
between letterbox, anamorphic 16:9 and center cut 4:3 styles. |
Software based down conversion. |
| HD Up Conversion |
Real-time up
conversion from 720HD to 1080HD during video capture. |
| Real
time effects |
Apple Final Cut Pro™
internal effects in DV, ProRes and uncompressed on Intel Mac OS
X™.
Adobe® Premiere Pro® internal effects in DV, MJPEG and
uncompressed. |
| Software Included |
Deck Control, Disk Speed Test,
LiveKey, FrameLink and Blackmagic driver. |
| Firmware Upgrade |
Firmware for cards built into
software driver. Loaded at system start, or via updater software. |
| Installation |
PCI Express 1 lane, compatible
with 1, 4, 8, 16 lane PCI Express slots.
Please see the full system requirements for Mac
OS X™ and Windows™.
Mac OS X™ systems require an Intel-based Mac Pro computer. |
| Product Warranty |
12 Month Limited Manufacturer's
Warranty. |
Test card was taken from a typical
production run. The HD/SD-SDI output from DeckLink Studio was
connected to a Tektronix WFM-700 HD-SDI waveform monitor and test
signal video files were used. Test results can vary slightly from
these results between different models tested due to component
tolerances used in production.
|
SDI Component Parade
 |
|
SDI Component Vector
 |
|
|
SDI Eye Pattern in HD
 |
|
SDI Jitter Performance in HD
 |
|
|
SDI Eye Pattern in SD
 |
|
SDI Jitter Performance in SD
 |
|
|
SDI Channel Status
 |
|
SDI Arrowhead
 |
Test card was taken from a typical
production run. The HD/SD-SDI output from DeckLink SDI was connected
to a Tektronix WFM-700 HD-SDI waveform monitor and test signal video
files were used. Test results can vary slightly from these results
between different models tested due to component tolerances used in
production.
|
SDI Component Parade
 |
|
SDI Component Vector
 |
|
|
SDI Eye Pattern in HD
 |
|
SDI Jitter Performance in HD
 |
|
|
SDI Eye Pattern in SD
 |
|
SDI Jitter Performance in SD
 |
|
|
SDI Channel Status
 |
|
SDI Arrowhead
 |
|
|
|
|
